China NA Type 1 Level 2 Wall-Mounted EV Car Charger Wallbox with ETL Approval Manufacture and Factory

NA Type 1 Level 2 Wall-Mounted EV Car Charger Wallbox with ETL Approval

Short Description:

The EVC12 is the very ideal residential EV charging station. It offers 48-16 amp charging and easy to install on a standard 240 AC circuit. Simply plug in the 18 ft cable to your EV and start charging right away. If you want to remote control the EV charger to take advantage of off-peak electricity rates, simply set the delay times by APP.

Sample: Support

Customization: Support

Certification: ETL, FCC

Input Voltage: 200-240V

Output Rating: 16A/3.8KW , 32A/7.7KW , 40A/9.6KW , 48A/11.5KW

Charging Interface: SAE J1772 , Type1 Plug

External Communication: Wi-Fi & Bluetooth (for APP smart control)

Access Control: Plug & Play

Cable Length: 18ft (25ft charging cable optional)

Send email to us Download as PDF

Product Detail

Product Tags

With our leading technology as well as our spirit of innovation, mutual cooperation, benefits and growth, we will build a prosperous future collectively with your esteemed firm for Factory directly China Manufacturer EV Wall Charger AC Charge with ETL Approval, We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

EV Charger Station Features:

JNT-EVC12
Regional Standard	NA Standard	EU Standard
Certification	ETL + FCC	CE
Power Specification
Input Rating	AC Level 2	1-Phase	3-Phase
	220V ± 10%	220V ± 15%	380V ± 15%
Output Rating	3.5kW / 16A	3.5kW / 16A	11kW / 16A
	7kW / 32A	7kW / 32A	22kW / 32A
	10kW / 40A	N/A	N/A
	11.5kW / 48A	N/A	N/A
Frequency	60HZ	50HZ

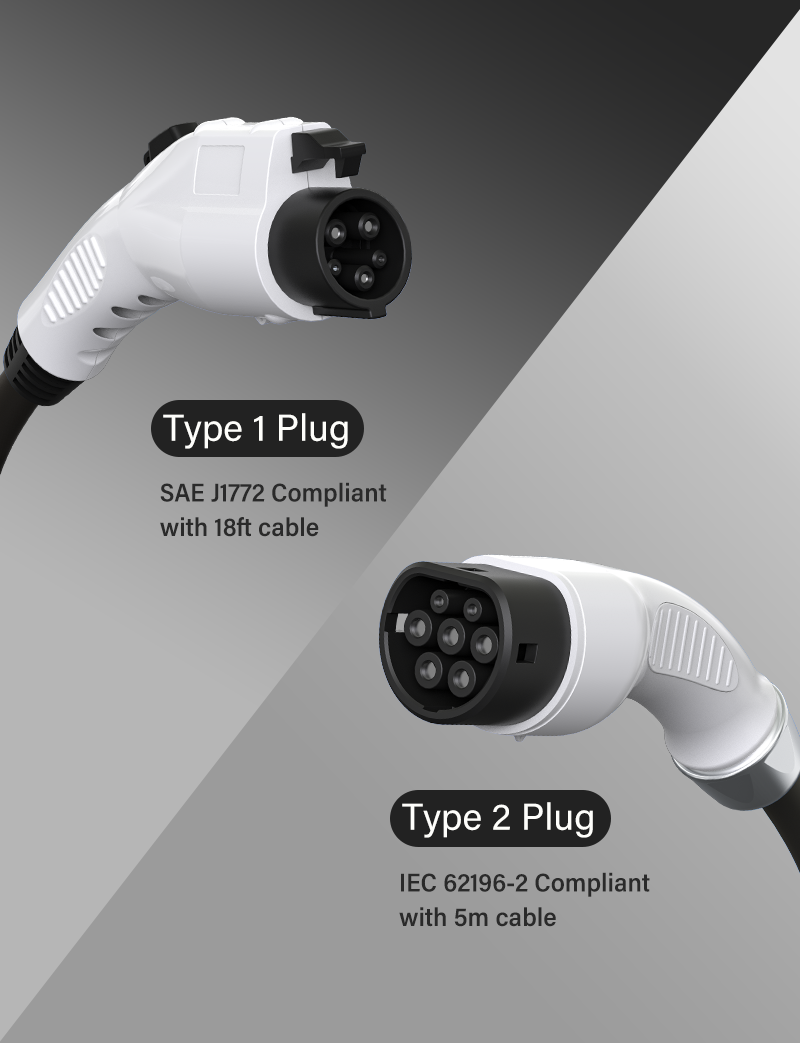

Charging Plug	SAE J1772 (Type 1)	IEC 62196-2 (Type 2)
Protection
RCD	CCID 20	TypeA+DC6mA

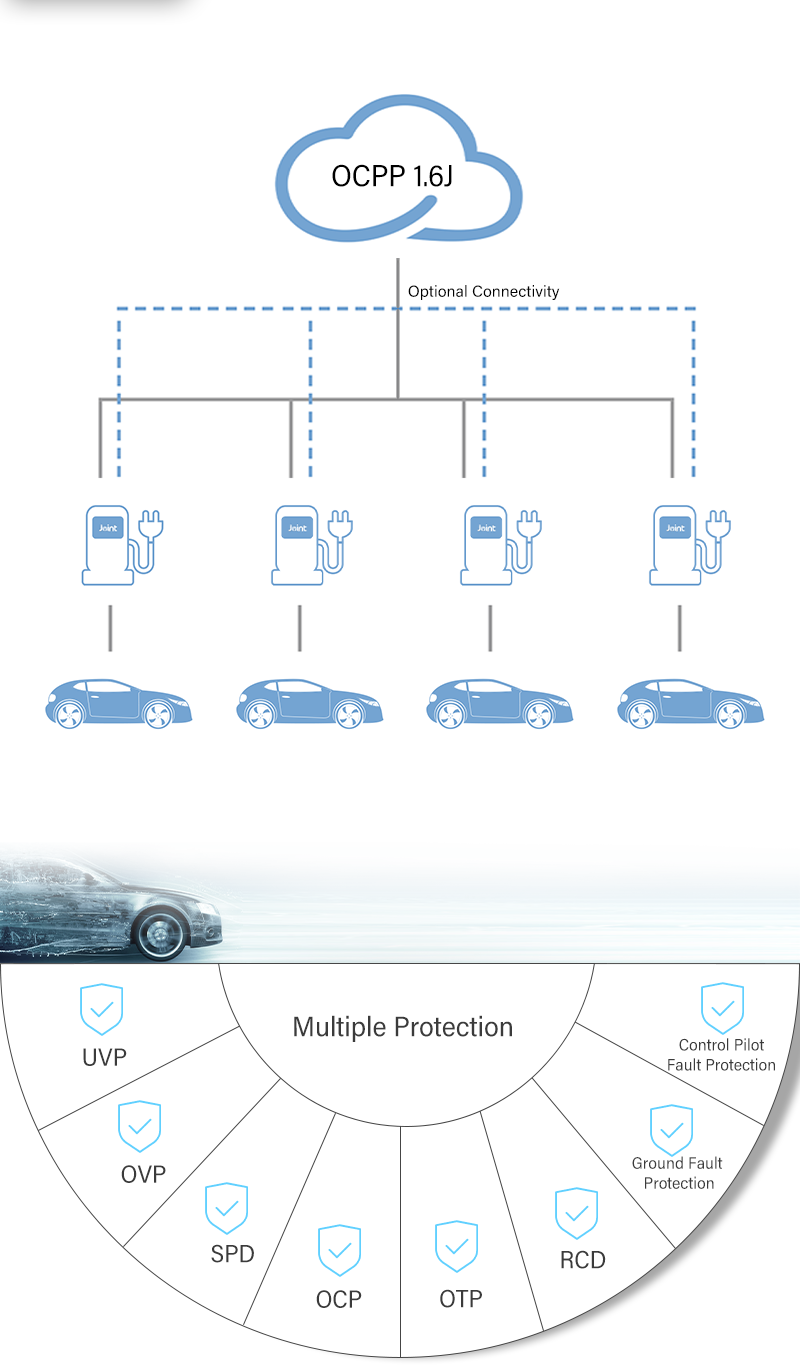

Multiple Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection

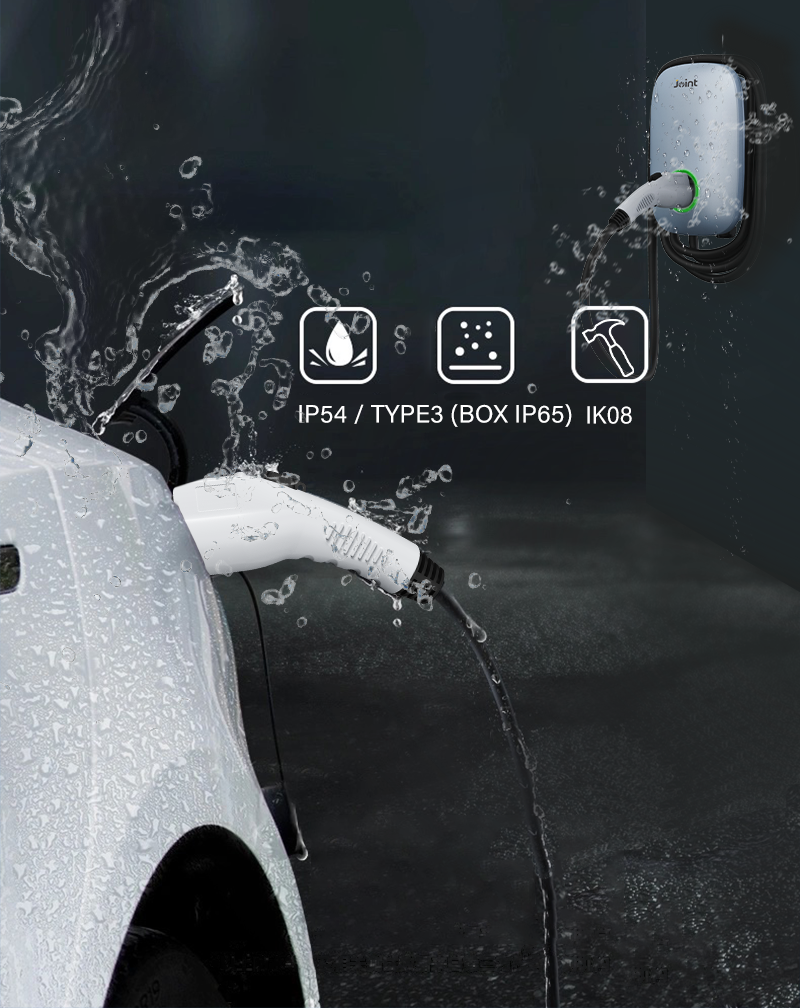

IP Level	IP65 for box
IK Level	IK10
Function

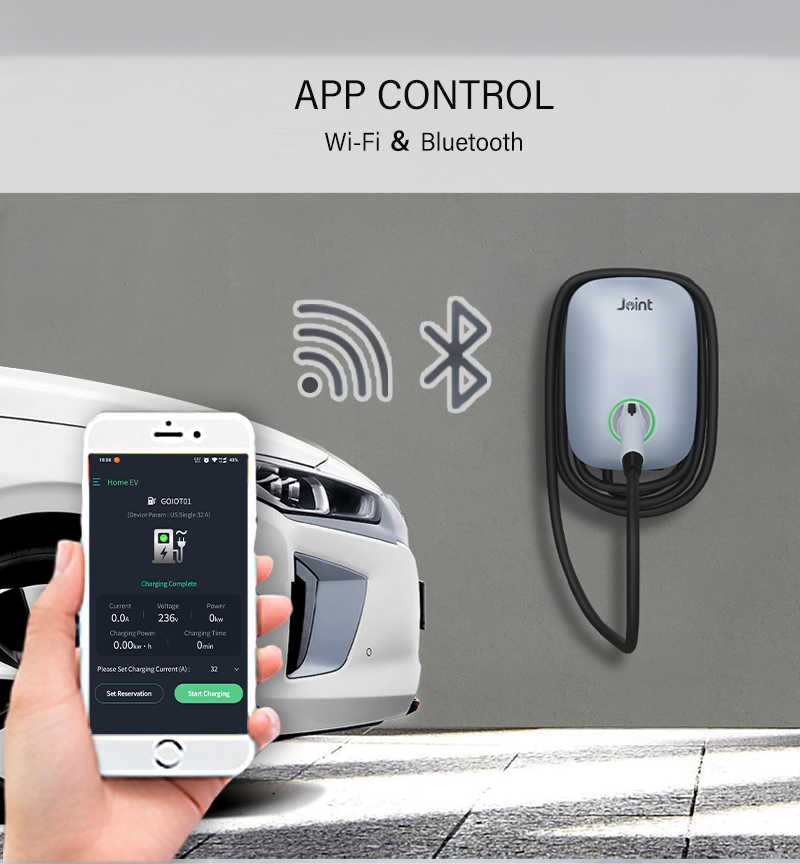

External Communication	Wifi & Bluetooth (for APP smart control)
Charging Control	Plug & Play
Environment
Indoor & Outdoor	Support
Operating Temperature	-22˚F~122˚F (-30˚C~50˚C)
Humidity	Max. 95% RH
Altitude	≦ 2000m
Cooling Method	Natural Cooling
