EU 4.3″ LCD screen IEC 62196-2 charging interface commercial charging station

EU 4.3″ LCD screen IEC 62196-2 charging interface commercial charging station

Short Description:

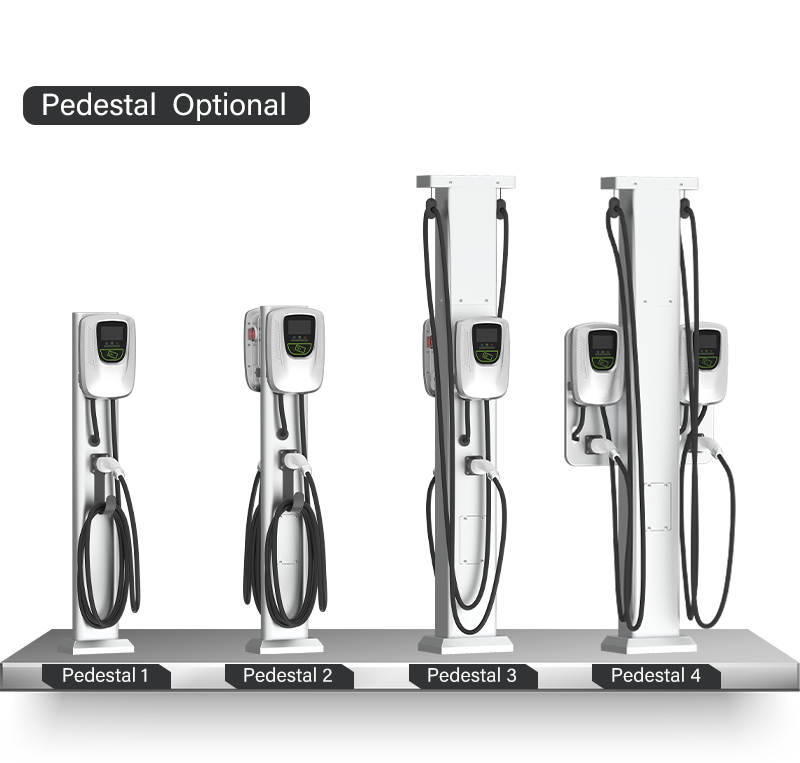

EVC10 charging station is designed for use in fleet and multifamily applications, which are ideally suited for depot charging and intended for personal charging in assigned parking spots. Available as a single-or dual-port station, in pedestal or wall mount and with 5m cable length, the EVC10 flexible configurations are perfect for all your electric fueling needs.


  • Sample: Support
  • Customization: Support
  • Certification: CE
  • Input Voltage: 230±10%(1-phase) or 400±10%(3-phase)
  • Output Power: 7KW , 11KW , 22KW
  • Charging Interface: IEC 62196-2 , Type2 Plug
  • Internal Communication: OCPP 1.6 JSON (OCPP 2.0 compatible)
  • External Communication: LAN (optional) + 4G (optional) or Wi-Fi (optional)
  • Charging Control: Plug & Play / RFID (ISO14443)
  • Cable Length: 18ft (25ft charging cable optional)
  • LCD Display: 4.3'' Screen
  • Product Detail

    Product Tags

    Introduction

    That has a sound business credit, great after-sales service and modern production facilities, we've earned an outstanding standing amid our buyers across the earth for High Quality China 32A LCD Electric Car Charger Wall-Mounted with Type2 Socket for Electric Vehicles, We sincerely welcome mates from all over the globe to cooperate with us to the basis of long-term mutual added benefits.

    Product Specification

    JNT - EVC10
    Regional Standard
    Regional Standard NA Standard EU Standard
    Power Specification
    Voltage 208–240Vac 230Vac±10% (Single phase) 400Vac±10% (Three phase)
    Power / Amperage    3.5kW / 16A - 11kW / 16A
    7kW / 32A 7kW / 32A 22kW / 32A
    10kW / 40A - -
    11.5kW / 48A - -
    Frequency 50-60Hz 50-60Hz 50-60Hz
    Function

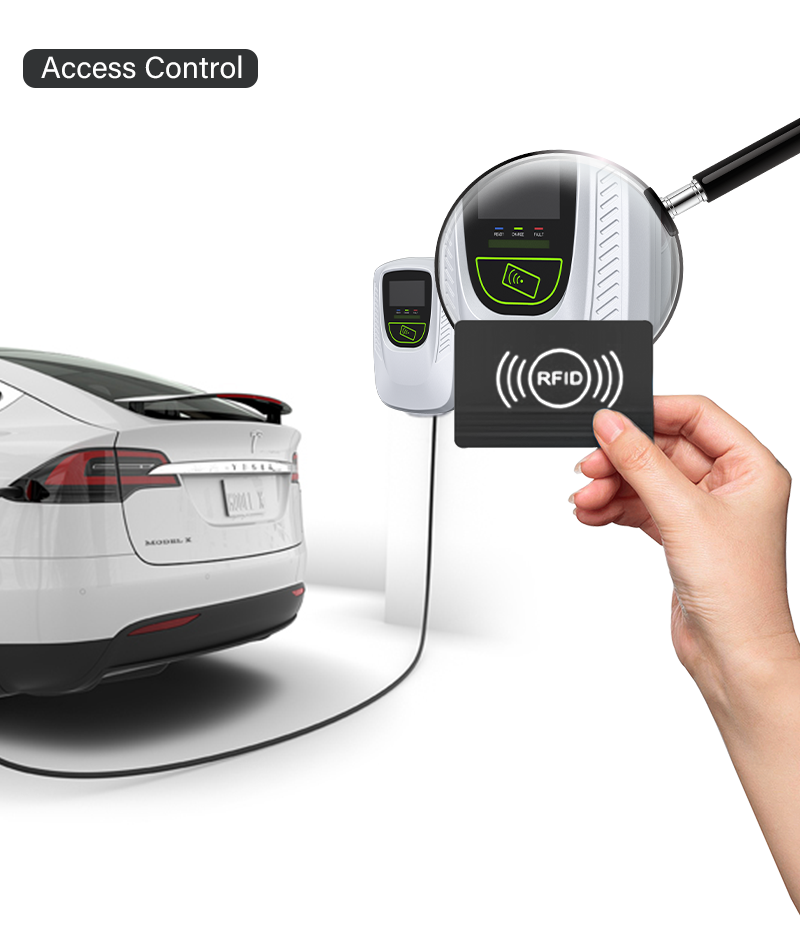

    User Authentication RFID (ISO 14443)

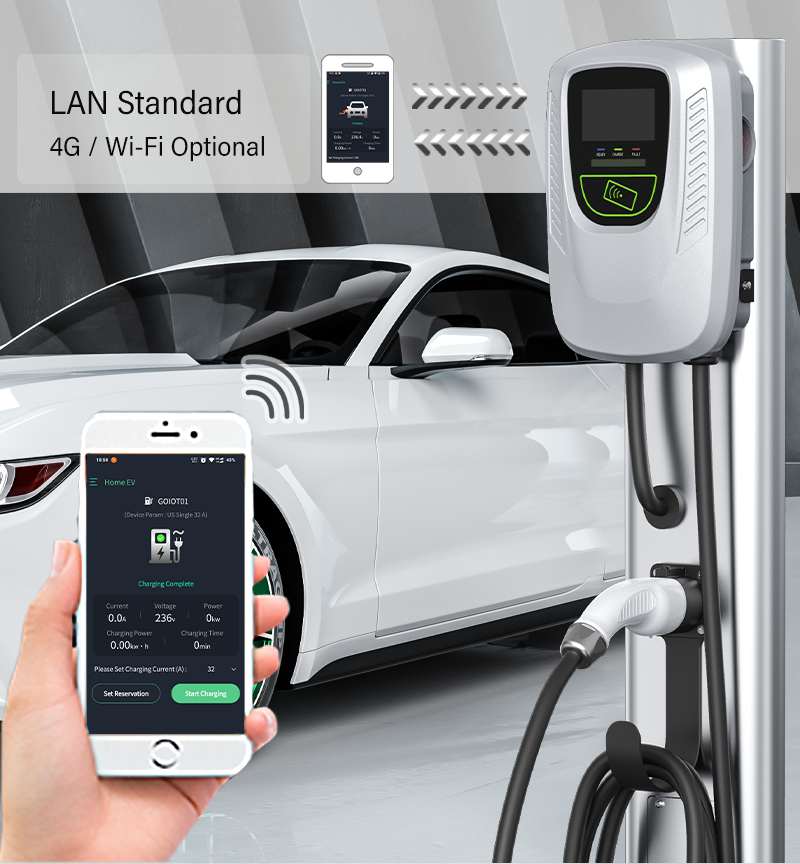

    Network LAN Standard (4G or Wi-Fi Optional with Surcharge)
    Connectivity OCPP 1.6 J
    Protection & Standard

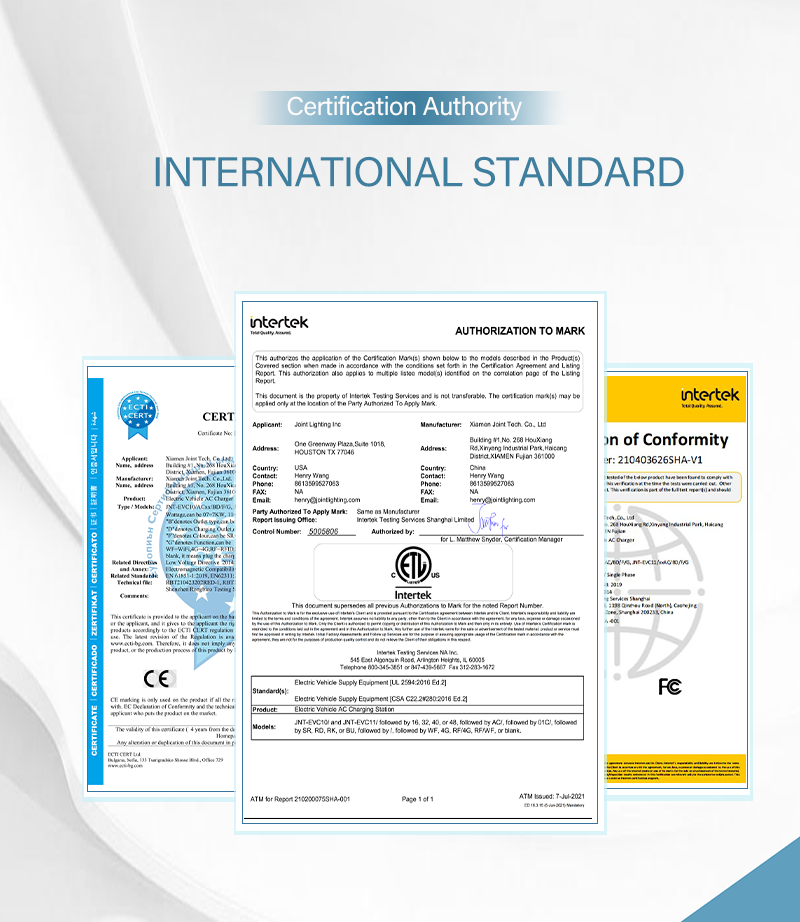

    Certificate ETL & FCC CE (TUV)
    Charging Interface SAE J1772 , Type 1 Plug IEC 62196-2 , Type 2 Socket or Plug
    Safety Compliance UL2594 , UL2231-1/-2 IEC 61851-1 , IEC 61851-21-2
    RCD CCID 20 TypeA + DC 6mA

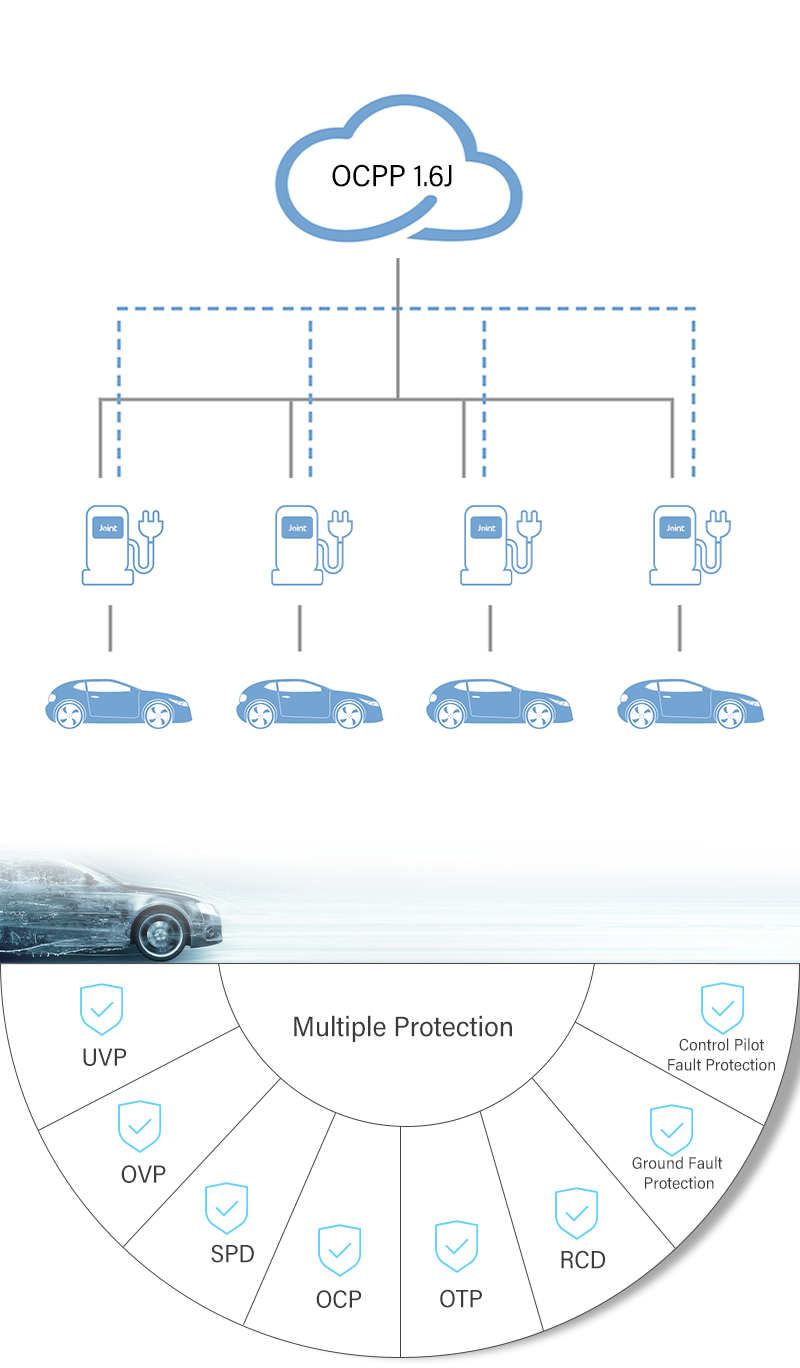

    Multiple Protection UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
    Environmental
    Operating Temperature -22°F to 122°F -30°C ~ 50°C

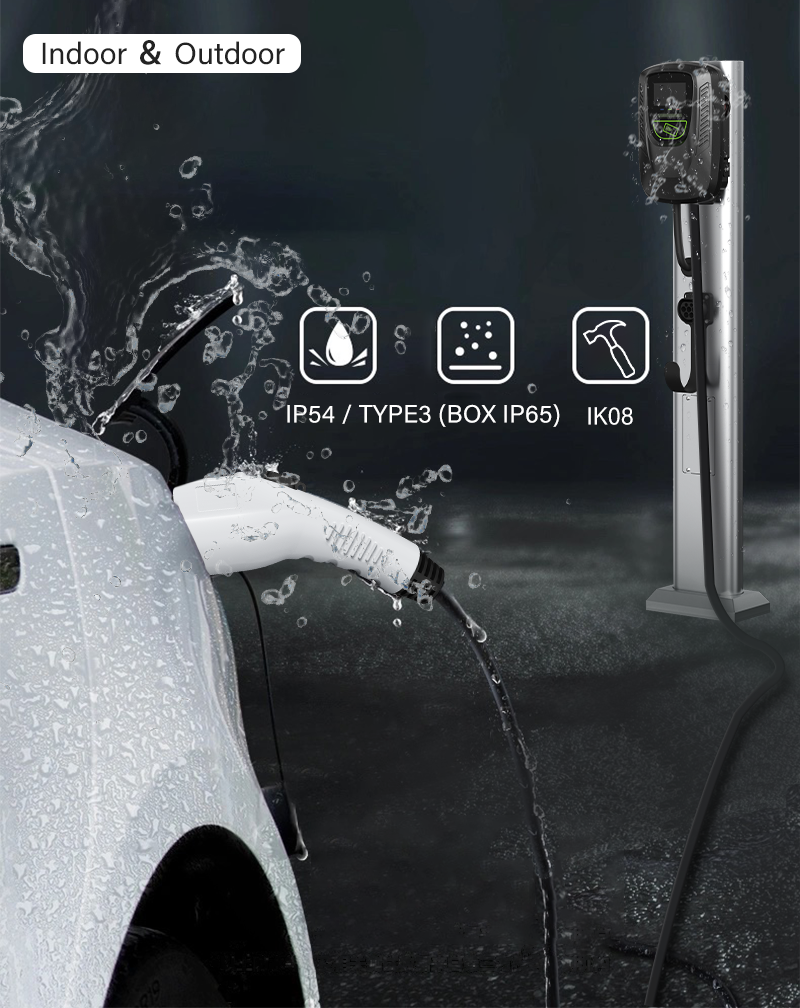

    Indoor / Outdoor IK08, Type 3 enclosure IK08 & IP54
    Relative Humidit Up to 95% non-condensing
    Cable Length 18ft (5m) Standard , 25ft (7m) Optional with Surcharge

    Product Details

    charging station (1) charging station (2) charging station (3) charging station (4) charging station (5) charging station (6) charging station (7) charging station (8) charging station (9)
