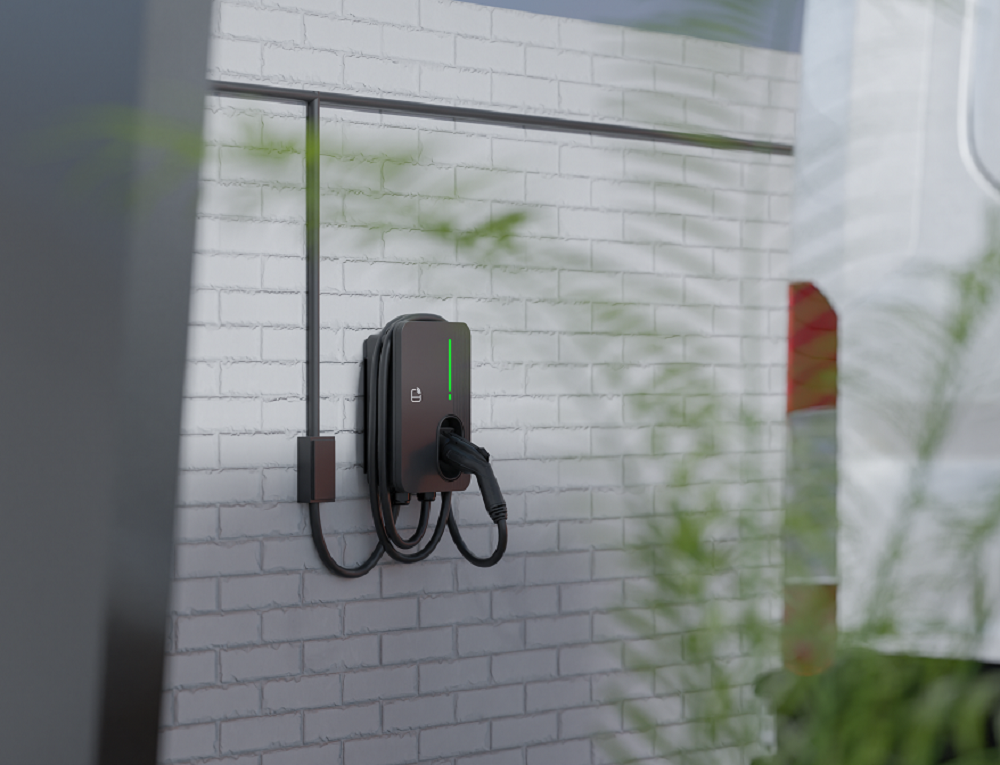

EVH007 Fleet Charging Solution: Plug & Charge with OCPP Integration
EVH007 Fleet Charging Solution: Plug & Charge with OCPP Integration
| JOLT 48A (EVH007) - Specification Sheet | |||||
| POWER | Input Rating | 208-240Vac | |||
| Output Current&Power | 11.5kW (48A) | ||||
| Power Wiring | L1 (L)/ L2 (N)/GND | ||||
| Input Cord | Hard-wire | ||||
| Mains frequency | 50/60Hz | ||||
| Connector Type | SAE J1772 , Type 1, 18 | ||||
| Ground Fault Detection | Ground Fault Detection | ||||
| Protection | UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection,
OCP, OTP, Control Pilot Fault Protection |
||||
| USER INTERFACE | Status Indication | LED indication | |||
| Connectivity | Bluetooth 5.2,Wi-Fi6 (2.4G/5G), Ethernet, 4G (Optional) | ||||
| Communication Protocols | OCPP2.0.1/0CPP 1.6Jself-adaptation、1s015118-2/3 | ||||
| Pile Group Management | Dynamic Load Balancing | ||||
| User Authentication | Plug & Charge (Free)、Plug & Charge (PnC)、RFID Card、OCPP | ||||
| Card Reader | RFID, ISO14443A、IS014443B,13.56MHZ | ||||
| Software Update | OTA | ||||
| CERTIFICATION & STANDARDS | Safety & Compliance | UL991, UL1998,UL2231,UL2594,IS015118 (P&C) | |||
| Certification | ETL/FCC / Energy Star | ||||
| Warranty | 36 months | ||||
| GENERAL | Enclosure Rating | NEMA4(IP65), IK08 | |||
| Operating Altitude | <6561ft (2000m) | ||||
| Operating Temperature | -22°F~+131°F(-30°C~+55°C) | ||||
| Storage Temperature | -22°F~+185°F(-30°C-+85°C) | ||||
| Mounting | Wall mount / Pedestal (optional) | ||||
| Color | Black (Customizable) | ||||
| Product Dimensions | 14.94"x 9.85"x4.93"(379x250x125mm) | ||||
| Package Dimensions | 20.08"ure Rating 10.04"(510x340x255mm) | ||||
