EU Wallbox Socket IEC Type2 16A 32A 250V 480V Electric Vehicle Charging Station

EU Wallbox Socket IEC Type2 16A 32A 250V 480V Electric Vehicle Charging Station

Short Description:

As the world welcomes more electric vehicle drivers, the demand for EV charging infrastructure continues to rise. To prepare any location, from public to private, from hotels to workplaces or family residences, Joint EV Charging offers solutions that are fast, reliable, and ready for the future.


  • Sample: Support
  • Customization: Support
  • Certification: CE
  • Input Voltage: 230±10%(1- phase) or 400±10%(3- phase)
  • Output Power: 7KW , 11KW , 22KW
  • Charging Interface: IEC 62196-2 , Type2 Plug
  • Internal Communication: OCPP 1.6 JSON (OCPP 2.0 compatible)
  • External Communication: LAN (optional) + Wi-Fi (optional)
  • Cable Length: 18ft (25ft charging cable optional)
  • Product Detail

    Product Tags

    Introduction

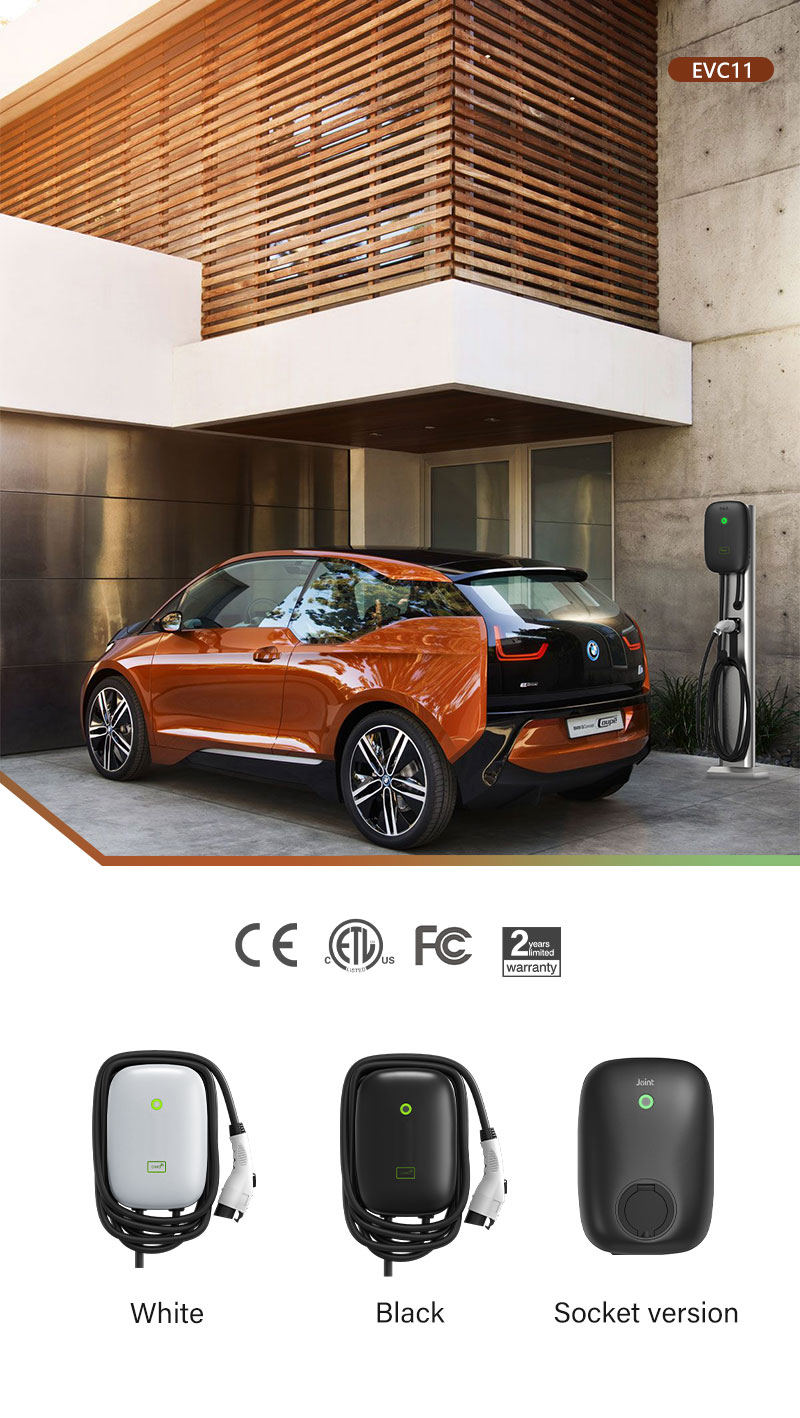

    The EVC11 is the very affordable way to charge your EV from the comfort of your own home. Whether you set it up in your garage or by your driveway, the 5m cable is long enough to reach your EV every time.

    Product Specification

    JNT - EVC11
    Regional Standard
    Regional Standard NA Standard EU Standard
    Power Specification
    Voltage 208–240Vac 230Vac±10% (Single phase) 400Vac±10% (Three phase)
    Power / Amperage    3.5kW / 16A - 11kW / 16A
    7kW / 32A 7kW / 32A 22kW / 32A
    10kW / 40A - -
    11.5kW / 48A - -
    Frequency 50-60Hz 50-60Hz 50-60Hz
    Function
    User Authentication RFID (ISO 14443)

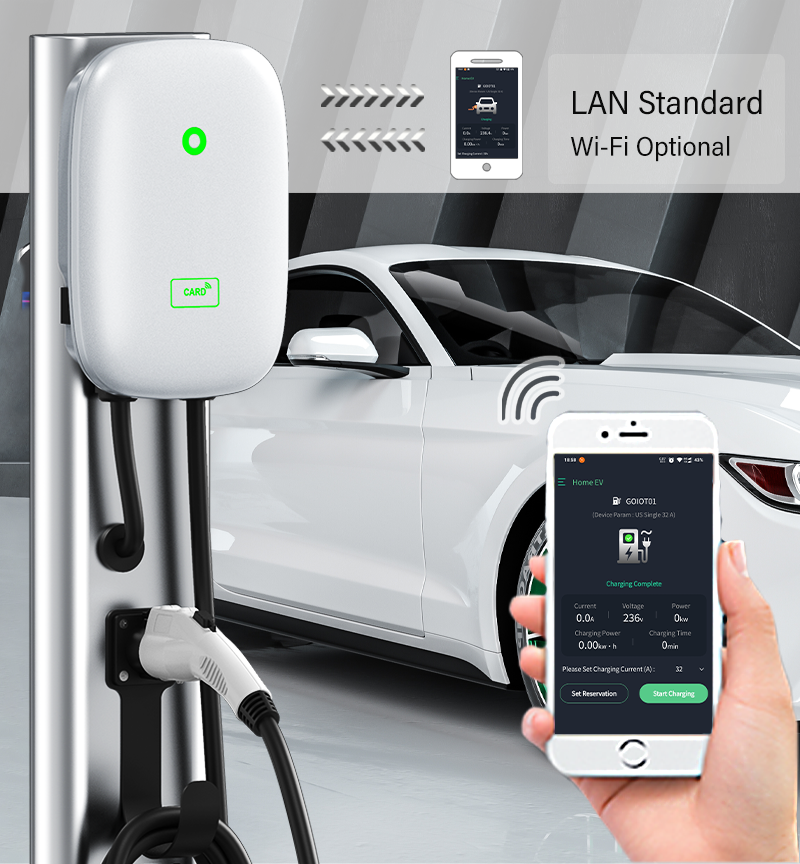

    Network LAN Standard (Wi-Fi Optional with Surcharge)
    Connectivity OCPP 1.6 J
    Protection & Standard

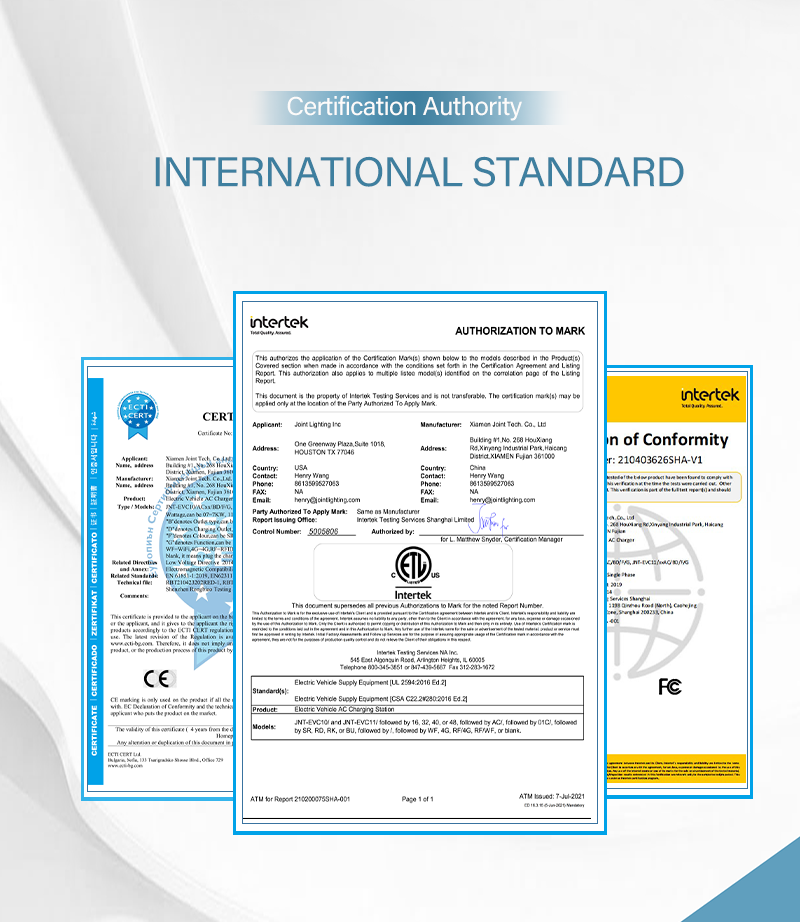

    Certificate ETL & FCC CE (TUV)

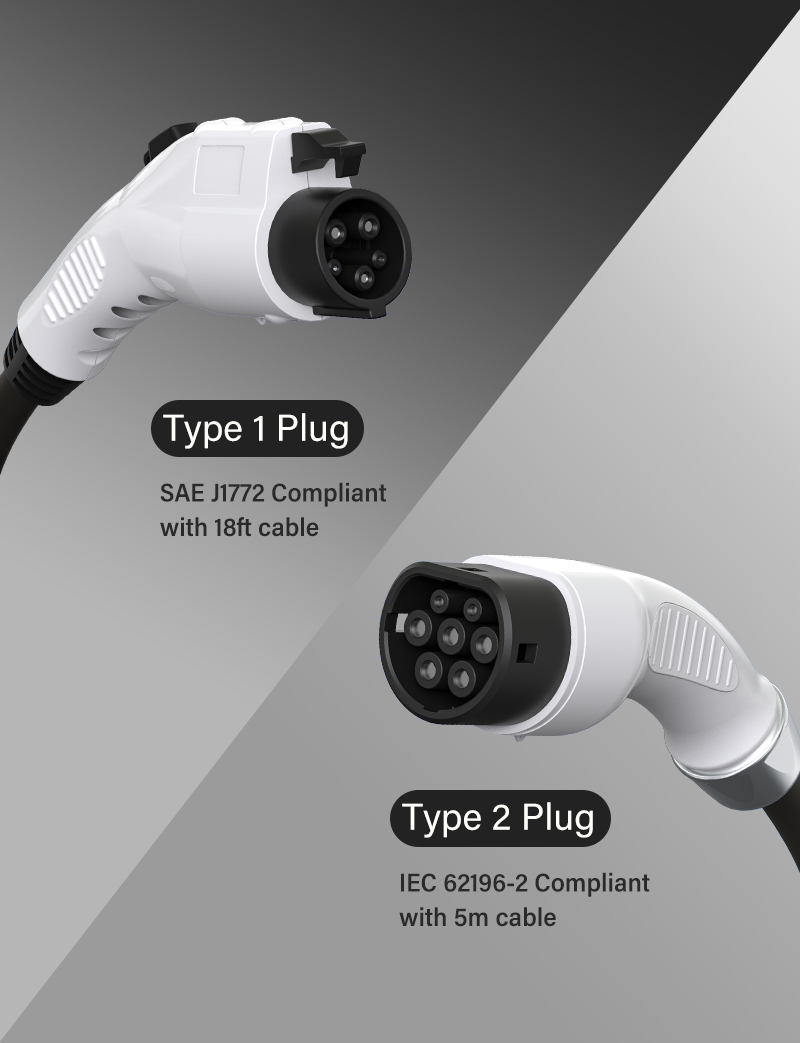

    Charging Interface SAE J1772 , Type 1 Plug IEC 62196-2 , Type 2 Socket or Plug
    Safety Compliance UL2594 , UL2231-1/-2 IEC 61851-1 , IEC 61851-21-2
    RCD CCID 20 TypeA + DC 6mA

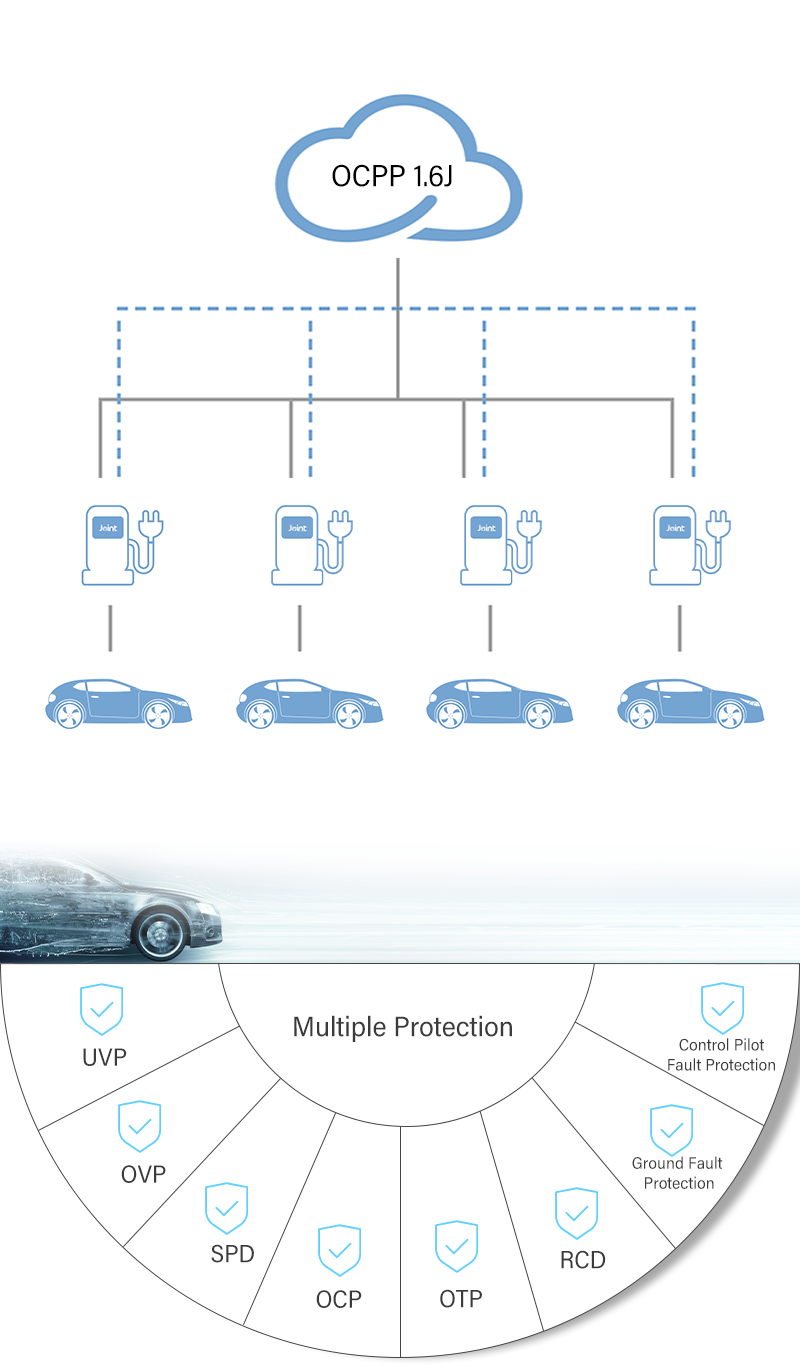

    Multiple Protection UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
    Environmental
    Operating Temperature -22°F to 122°F -30°C ~ 50°C
    Indoor / Outdoor IK08, Type 3 enclosure IK08 & IP54
    Relative Humidit Up to 95% non-condensing
    Cable Length 18ft (5m) Standard , 25ft (7m) Optional with Surcharge

    Product Details

    EV Charger EV Charger EV Charger EV Charger EV Charger EV Charger EV Charger EV Charger EV Charger
